ML1000W - Væg version

MIMLED 1000
Compact LED surgical light

MIMLED 1000 delivers 100,000 lux at 1 meter.

Homogeneous lighting
Each LED module illuminates the surgical field independently. The result is a shadow-free and homogeneous light field with great depth, even when working directly under the lamp.

Light control with endo-mode
While most compact surgical lights cannot be dimmed to low light levels, MIMLED offers a wide light range down to 10,000 lux.

Color rendition / Temperature
The lamp's high color rendition index (CRI > 95) ensures optimal tissue contrast.
Particularly, red hues are rendered with high precision (R9 > 90), enhancing the visualization of the surgical field.
MIMLED has a fixed color temperature of 4,000 K.

Design & handling
The compact, rounded shape reduces air resistance in operating rooms with laminar flow and helps maintain sterility in the field.
Separate light controls for sterile and non-sterile users ensure easy and safe operation.
Turn on the light and adjust the intensity by simply rotating the blue sterile handle.

Available in 3 versions

• On trolley stand

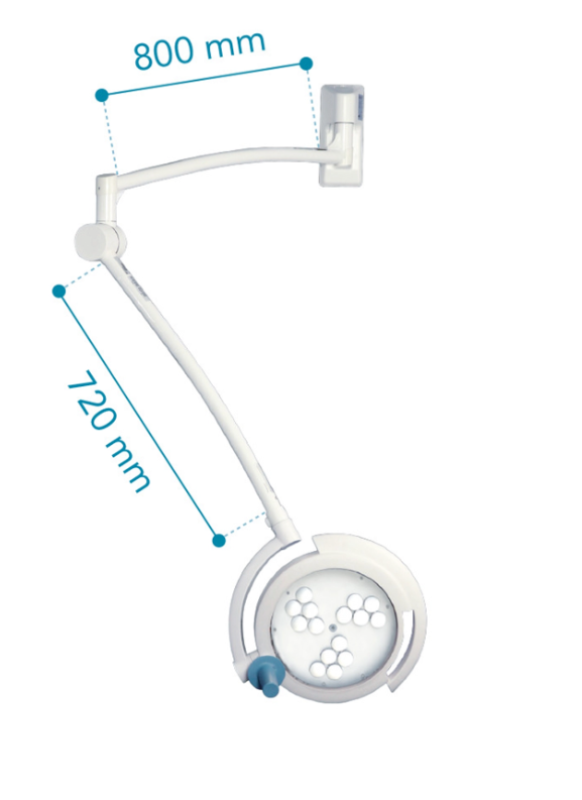

• Wall-mounted

• Ceiling-mounted (up to 3.40 m ceiling height)

Technical Specifications – MIMLED 1000

• Light Source: LED

• Number of LEDs: 15 pcs.

• Illumination at 1 m: 100,000 lux

• Lifetime: > 50,000 hours

• Color Temperature: 4,000 K

• Color Rendition: > 95% Ra / > 90% R9

• Field Diameter at 1 m: 210 mm

• Field Diameter (D50/D10): 140 mm / 210 mm

• Power Consumption: 33 W

• IP Rating: 42

• Power Supply: 100/240V – 50/60Hz

• Dimmable: Yes
