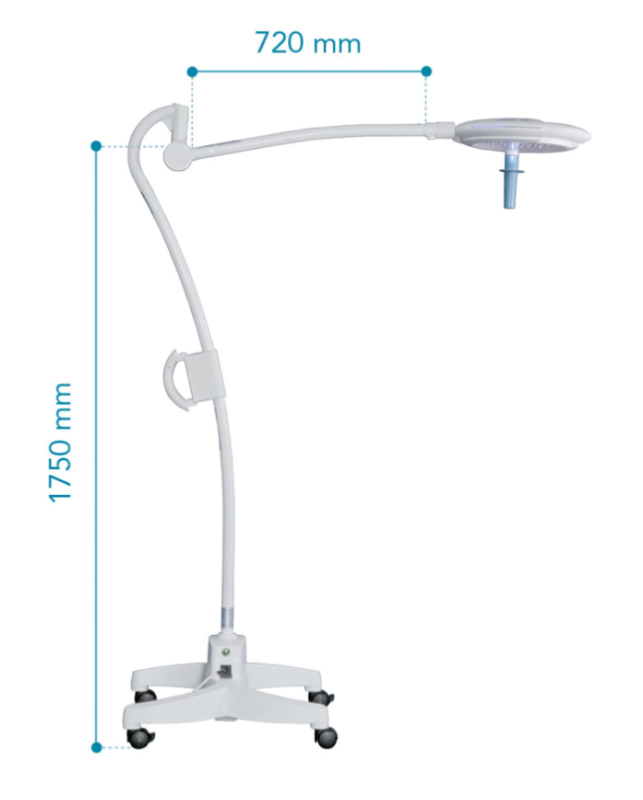

Surgical lamp Mimsal Mimled 600, floor model

MIMLED 600 – Compact LED Operating Light

MIMLED 600 is a compact LED operating light that delivers 60,000 lux at a distance of 1 meter. It combines high performance, optimal color rendering, and user-friendly design – ideal for operating rooms and clinics.

Homogeneous illumination – shadow-free working field
Each LED module illuminates the operating field independently. The result is a homogeneous, shadow-free light field with great depth, even when working directly under the lamp.

Light control with Endo Mode
While most compact operating lights cannot be dimmed, MIMLED 600 offers a wide range of brightness – down to 10,000 lux. Perfect for endoscopic procedures and situations where lower light levels are necessary.

Color rendering and color temperature

High color rendering index (CRI > 95) ensures optimal tissue contrast.
Specifically, red shades are rendered with the highest precision (R9 > 90), enhancing visualization of the operating field.
Fixed color temperature at 4,000 K for natural lighting.

Design and user-friendliness
Compact, rounded shape reduces air resistance in operating rooms with laminar flow.
Maintains sterility around the operating field.
Separate light controls for sterile and non-sterile users.
Simple operation: Turn on the lamp and adjust the brightness with the blue sterile handle.

Technical specifications – MIMLED 600

• Light source: LED

• Number of LEDs: 15 pcs.

• Illumination at 1 m: 60,000 lux

• Lifespan: > 50,000 hours

• Color temperature: 4,000 K

• Color rendering: > 95% Ra / > 90% R9

• Light field diameter at 1 m: 210 mm

• Field diameter D50/D10: 140 mm / 210 mm

• Power consumption: 24 W

• IP rating: IP42

• Power supply: 100–240 V / 50–60 Hz

• Dimmable: Yes
